Pure Resonance Audio RZMA120BT 4 Zone 120W Rack Mount Mixer Amplifier

$ 1,199.99
$ 999.99

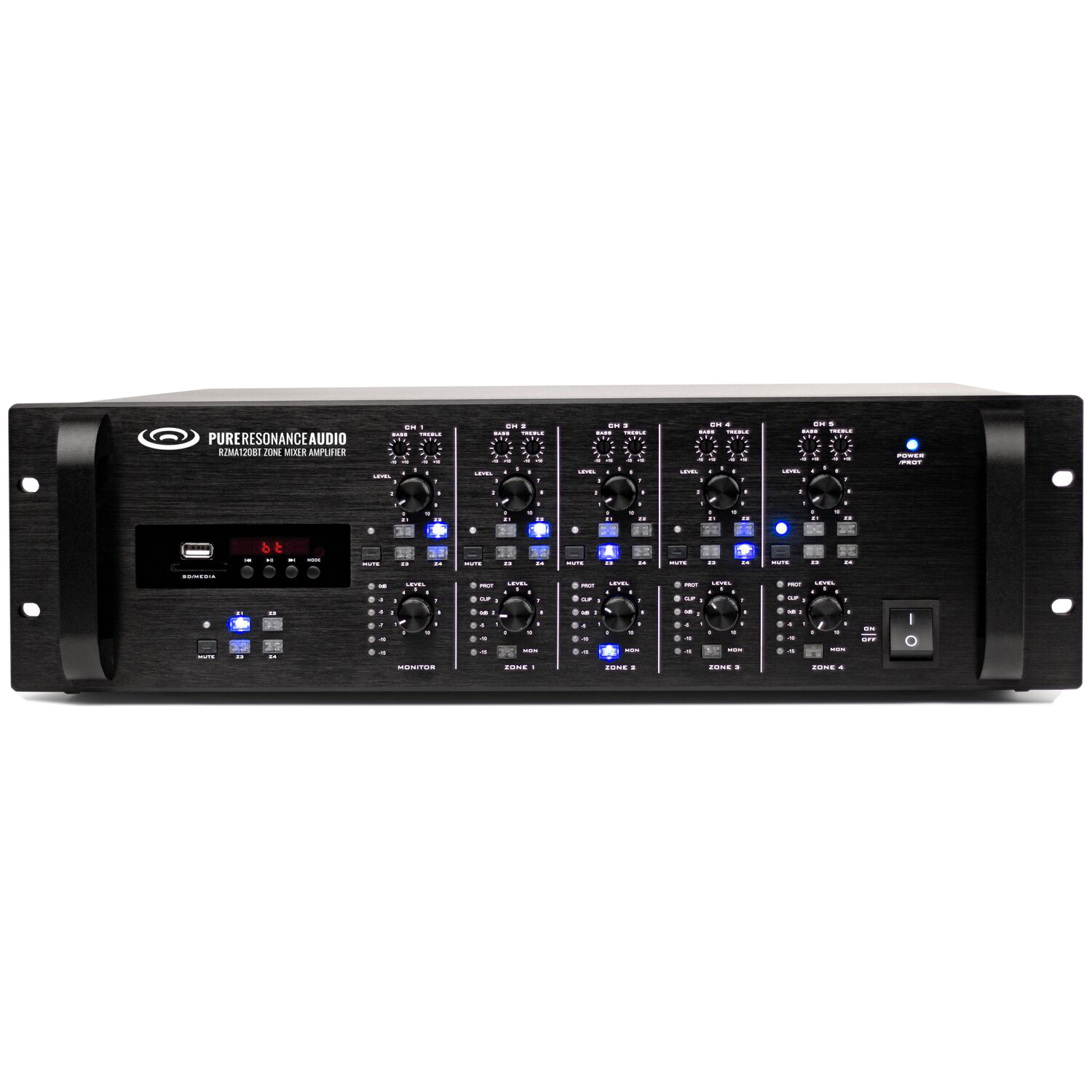

Pure Resonance Audio RZMA120BT

4 Zone 120W Commercial Rack Mount Mixer Amplifier with 4 x 120 Watts 4 Ohm, 70V/100V and Bluetooth

Powerful and feature-packed, the Pure Resonance Audio RZMA120BT is a 4 zone commercial mixer amplifier equipped with built-in MP3, FM tuner, Bluetooth and recording capability. Featuring 4 x 120-watt output capability at 4 Ohm, 70 and 100 Volts, this multi-zone mixer amplifier is full of power. It is designed with advanced matrix technology that allows four-zone selectable inputs to be assigned to a zone, or across multiple zones with the push of a button. A monitor channel provides a 1-watt 8-ohm output for a control room monitor speaker. A convenient IR remote is available for volume and source control, and remote microphones can be daisy-chained via Cat5 for zone paging.
Star Star Star Star Star

The mixer amp we purchased has been perfect for the task. It is easy to operate and does exactly what we need.

Multi-zone

This advanced multi-input audio mixer amplifier features matrix technology, letting you route up to 5 separate inputs to 4 distinct zones.

All-in-one solution

Designed as an all-in-one solution for configuring and operating multi-zone audio systems for hotels, sports venues, and houses of worship, schools, retail spaces, restaurants, meeting and conference spaces.

Simple to operate

The RZMA120BT is equipped with zone-selectable inputs, meaning that an input can be assigned to any output. You simply push a button to route your inputs to the appropriate outputs, no programming or tuning required.


Bluetooth

Equipped with built-in MP3, FM tuner, Bluetooth and recording capability.



Powerful

Designed with 4 ohms, 70 Volt and 100 Volt terminals and 4 x 120W power output.




Multiple rear inputs

The rear inputs on the RZMA120BT include 3 XLR/TRS combo jacks with MIC or LINE level switching, dual RCA inputs with variable gain control, telephone phone input with variable gain control, and remote mic input via network category cabling.

The RZMA120BT 120W Multi-Zone Mixer Amplifier

Pure Resonance Audio RZMA120BT 70V Bluetooth Commercial Multi-Zone Mixer Amplifier

Designed as an all-in-one solution for configuring and operating multi-zone audio systems for hotels, sports venues, and houses of worship, schools, retail spaces, restaurants, meeting and conference spaces, the Pure Resonance Audio RZMA120BT 4 zone commercial mixer amplifier is designed with 4 ohms, 70 Volt and 100 Volt terminals and 4 x 120W power output. It is a rack mount audio matrix system multi-room solution with MP3, tuner, and Bluetooth.

Digital Matrix Switching Enables Any Input to be Assigned Across Any Zone or Across Multiple Zones

This advanced multi-input audio mixer amplifier features matrix technology, letting you route up to 5 separate inputs to 4 distinct zones. Ideal for multi-zone paging, music distribution, and room-combining applications, each input is also supplied with separate bass, treble and volume control for precise sound in each individual zone.

Simple to operate without complicated programming

The RZMA120BT is equipped with zone-selectable inputs, meaning that an input can be assigned to any output. You simply push a button to route your inputs to the appropriate outputs, no programming or tuning required. You can also mix 70v and 8 ohms between zones with high impedance and low impedance supported with every zone.

Easily record your own message through the mixer-amplifier and play it back through your system via USB or SD card

The RZMA120BT makes it easy to record your own message or content and play it back as needed. Using the recordable media player, simply plug a microphone into the amplifier and record specific messages that you need to play back regularly. You can then play back those recorded messages through your system by simply hitting a button on your remote. The ease of this system saves both time and energy. The RZMA120BT also allows you to conveniently play your own music through the mixer-amplifier via Bluetooth connection.

Control Inputs with Simple Push-button Routing

Advanced matrix technology allows four zone selectable inputs to be assigned to a zone, or across multiple zones with the push of a button. Analog routing via button assignments means that no programming is needed. You can easily route outputs through the button selections on each input on the front of the mixer amplifier.

Multiple Rear Inputs Allow Mixer Amplifier to Meet a Variety of Needs

The rear inputs on the RZMA120BT include 3 XLR/TRS combo jacks with MIC or LINE level switching, dual RCA inputs with variable gain control, telephone phone input with variable gain control, and remote mic input via network category cabling.

High Impedance or Low Impedance Outputs Configurable By Zone

High or low impedance outputs at 4 ohms, 70V, and 100V are configurable by zone. The inputs and outputs can be matrix selected, thus it is a highly integrated 4 channel audio matrix system solution with MP3 player for hotels, shopping malls, sports centers, entertainment centers, etc.

Use the PMZ16 Remote Microphone Station for All Calls or Zone Specific Calls

The Pure Resonance Audio RZMA120BT has an optional paging microphone zone control station with chime generator and 2 & 4 tone selector for all-calls or zone specific calls. You can use the Pure Resonance Audio PMZ16 remote microphone station with 16” gooseneck condenser microphone to page to each zone independently or to all the zones at one time. The PMZ16 features 24V DC power input, built-in independent switching power supply, online function and online interface for link in/link out, and 10 segments level meter. The PMZ16 can be daisy-chained (4 max) via Cat5 for zone paging and chimes, and 1-4 PMZ16 paging mic stations can be connected to one RZMA120BT. The maximum CAT5 length between microphone paging station should not exceed 500 meters. The Mic/chime/volume gain can be adjusted by the volume control on the rear panel. When the call confirmation button is turned off, the call confirmation indicator will be off and there is no call signal output.

Built-in Control Room Monitoring

A monitor is built-in for in-room monitoring use with 1 watt/8 ohm output for zone monitoring. The control room can monitor any combinations of zone outputs and has its own level.

Line Outs Accessible for Every Zone

Balanced 1-volt line level outputs at 600Ω are available for every zone.

RS232 Serial Communication Port

An RS232 serial control port command set is available upon request.

SPECIFICATIONS

Rated Power Output: 4 Zone Channels x 120W

Speaker Outputs: 4 Ω, 70V/100V

Monitor Output: 1W/8 Ω

Input Sensitivity and Impedance:
CH1, CH2, CH3: MIC: ± 2.5mV/600 Ω
PHANTOM: ± 2.5mV
LINE: ~175mV/10K Ω balance input
CH5~6: 350mV/10K Ω balance input
TEL: 350mV/10K Ω
REMOTE MIC: ± 387mV/10K Ω

Tone:
Bass: ±10dB at 100Hz
Treble: ±10dB at 100Hz

S/N Ratio: >65dB

LINE 1-4 Output Level: 1V/600 Ω (balance output)

Frequency: 80-16KHz

MP3: Support MP3 format, max capacity of 32GB

SD File System: Only FAT16, FAT32, the biggest one partition, does not support folder to store

Harmonic Distortion: <1%

Power Consumption: 750W

Supply Voltage: ~120V 60Hz

Relative Humidity: <95% (No condensation)

Dimensions (H x W x D): 5.20" (132 mm) x 19" (483 mm) x 17.32" (440 mm)

Weight: 41.2 lbs (18.69 kg)

Shipping Weight: 45.6 lbs (20.68 kg)

FAQs

What comes in the box?
(1) RZMA120BT 4 Zone Bluetooth Mixer Amplifier
(1) IR Remote Control
(1) Power Cord
