Stadium Audio System Featuring 3 S10 10" Stadium Speakers, 4 S6 6.5" 70V Speakers, MX9 Mixer, DA2500 Power Amp, BTR1 BT Receiver & PTT1 Paging Mic

$ 5,562.99
$ 4,794.99

Outdoor Stadium Audio System

Weatherproof Loudspeaker System
Delivers Clear Intelligible Sound

This outdoor stadium audio system delivers outstanding audio precision and adaptability with three 10" 70V outdoor stadium speakers, four 6.5" 70V outdoor speakers, a 9-channel Bluetooth mixer with effects, a dual-impedance 2-channel 500W power amplifier, a wireless Bluetooth receiver with 100ft of range, and a PTT desktop microphone ensuring exceptionally clear communication.

DURABLE SPEAKERS

UV Protected Against Harsh Sun and Built to withstand Wind, Water, Dust, and Dirt

WEATHERPROOF SPEAKERS

The S10's highly weatherproof IP66-rated construction ensures solid durability and full protection against dust and other particles as well as direct high-pressure water jets for long-term reliability in severe outdoor environments.

WATER-RESISTANT SPEAKERS

The S6 IP65-rated all-weather housing protects against direct contact with water and dust, while the UV protection and ABS housing prepare the speaker for demanding outdoor use.

BLUETOOTH MIXER

Professional quality mixer features Bluetooth audio streaming, MP3, USB with sound card function, and recording. Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects.

POWERFUL AMPLIFIER

High-performance switching power supply and Class-D type power amplifier with two 500-watt channels (at 70V and 4Ω) with 70-volt and 4, 8, or 16-ohm output switches.


EXTENDED-RANGE

Stay connected and get ultimate wireless freedom and maximum flexibility with BTR1s extended-range wireless streaming, delivering consistent performance for up to 100ft.

PAGING MICROPHONE

The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications.




Outdoor Stadium Sound System

Enhance your sporting events with our state-of-the-art stadium audio system. The S10 70-volt 10" outdoor stadium loudspeakers deliver unrivaled speech intelligibility with wide 90° x 90° coverage. Thanks to a weather protection rating of IP66, these speakers can withstand all conditions. Suitable for indoor and outdoor commercial installations, the S6 6.5" 2-way 70-volt surface mount speakers deliver high-quality sound with its weather-resistant ABS enclosure, ensuring powerful sound year-round. The MX9 9-channel rack mixer offers seamless Bluetooth connectivity and built-in effects for wireless music streaming and sound enhancement. At the heart of the system is the DA2500, a 500W dual-impedance rackmount power amplifier that delivers consistent power to the speakers and is easily tuned for optimum performance. Expand your audio playback possibilities with the BTR1 Bluetooth wireless audio receiver, which boasts an extraordinary range of 100 feet. This outdoor stadium sound system also features the reliable PTT1 push-to-talk microphone, ensuring clear play-by-play and announcement commentary.

Provide Clear Vocal Intelligibility

Ensuring clear speech intelligibility is critical to any sound system, especially in stadium environments where effective communication is critical. Whether adding to the excitement of a heart-pounding sporting event, directing a captivating dance performance, or organizing large gatherings and presentations, this stadium sound system delivers unmatched sound quality, adaptability and ease of use. Designed for seamless, clear communication, this stadium audio setup features a rugged PTT1 tabletop push-to-talk gooseneck microphone. With superior voice capture and adjustable gooseneck positioning, this paging microphone enables presenters to effortlessly speak to audiences with unparalleled clarity and detail. This exceptional configuration seamlessly blends superior sound quality with operational efficiency to elevate the stadium atmosphere.

S10 10" All-Weather Stadium Loudspeakers

The Pure Resonance Audio S10 10" outdoor weatherproof stadium loudspeaker is built to withstand exposure to the harshest environmental conditions of outdoor installations while delivering high-quality audio performance. A tough fiber-reinforced plastic and metal housing with a metal grill maintains solid durability and long service life. IP66 rated, this highly weather-resistant speaker is fully protected against dust or dirt particles and direct high-pressure water. The S10 is an ideal solution for background and foreground music, paging, and public address in football and soccer stadiums, sports facilities, athletic centers, arenas, and a wide variety of other challenging indoor and outdoor commercial applications.


S6 6.5" 70V Outdoor Surface Mount Speakers

The Pure Resonance Audio S6 2-way 70-volt surface mount speaker is designed to provide quality audio performance for indoor and outdoor commercial installations. The IP65 weather-resistant rated, UV-protected, and durable ABS enclosure makes the S6 ideal for creating a robust sound atmosphere year-round, indoors and out. This all-weather speaker includes a 6.5" polypropylene woofer and 1" silk membrane tweeter that delivers premium full-range frequency response with a built-in 70V/100V transformer and an 8-ohm bypass. A matching 180-degree mounting bracket allows for quick and easy installation on the wall, under awnings, and overhangs. The S6 is perfect for background and foreground level music, paging, and general-purpose audio where high-quality indoor/outdoor sound is needed.

MX9 9-CHANNEL MIXER with Bluetooth & Effects

The Pure Resonance Audio MX9 redefines the rack mount audio mixer, offering versatile mixing, effects, and control of 9 mixing channels, all conveniently packaged in a space-saving 3U chassis. This rack-mounted mixer provides a wide range of inputs with the ability to adapt to virtually any audio source. The MX9 features an onboard 24-bit DSP effects processor, allowing users to quickly and easily add a range of effects to their mixes with simple channel operation. In addition, the generously equipped 9-channel rack mount mixer includes a media player with a display screen that supports Bluetooth audio streaming, MP3, and USB. Featuring an extensive connectivity range for true versatility and professional sound quality, the MX9 is perfect for both fixed installations and mobile rigs.

DA2500 DUAL-IMPEDANCE 500W POWER AMPLIFIER

The Pure Resonance Audio DA2500 is a dual-impedance 2-channel Class-D power amplifier with a built-in high-efficiency selectable impedance power supply. Each powerful 500-watt channel has an independent 70V/4-16Ω switch allowing them to simultaneously use a different impedance, delivering more flexibility in various commercial applications. This high-performance rack mount audio amplifier is a cost-effective solution housed in a standard 1U 19" lightweight chassis. The DA2500 features short-circuit, overload, and overheating protection with cooling fans to provide heat dissipation, maintaining safe operation in environments with long working hours.

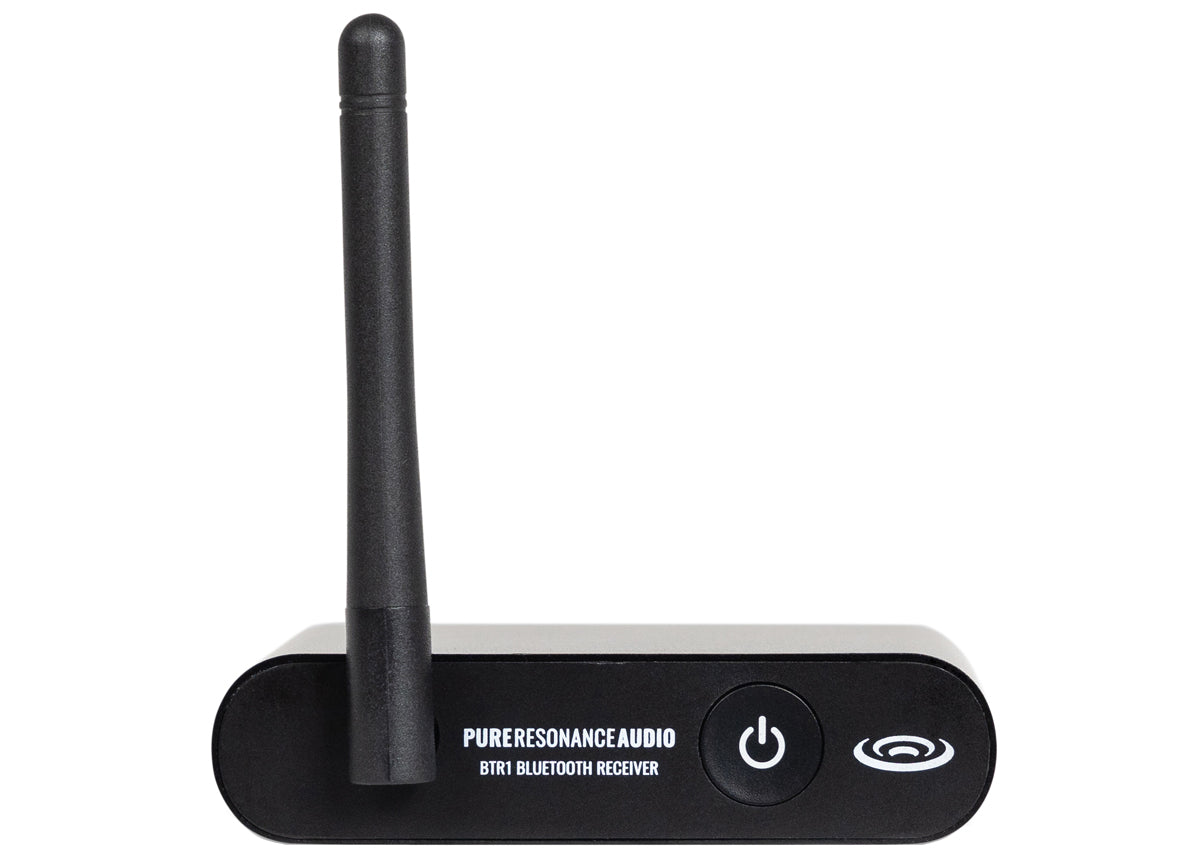

BTR1 Bluetooth Wireless Audio Receiver

The Pure Resonance Audio BTR1 Bluetooth wireless audio receiver streams high-fidelity audio to your commercial sound system from any Bluetooth-enabled device. The BTR1 provides superior high-resolution audio streaming with an extended wireless range of up to 100 feet. This Bluetooth stereo receiver is easy to set up, pairs quickly, remembers up to 8 devices, and automatically reconnects to the last paired device. With the latest Bluetooth technology and high-end audio streaming codecs, the BTR1 features an improved signal-to-noise ratio and reduced Bluetooth audio delay. This audio Bluetooth receiver delivers crystal clear, rich sound that retains a full dynamic range for the highest-quality listening experience.

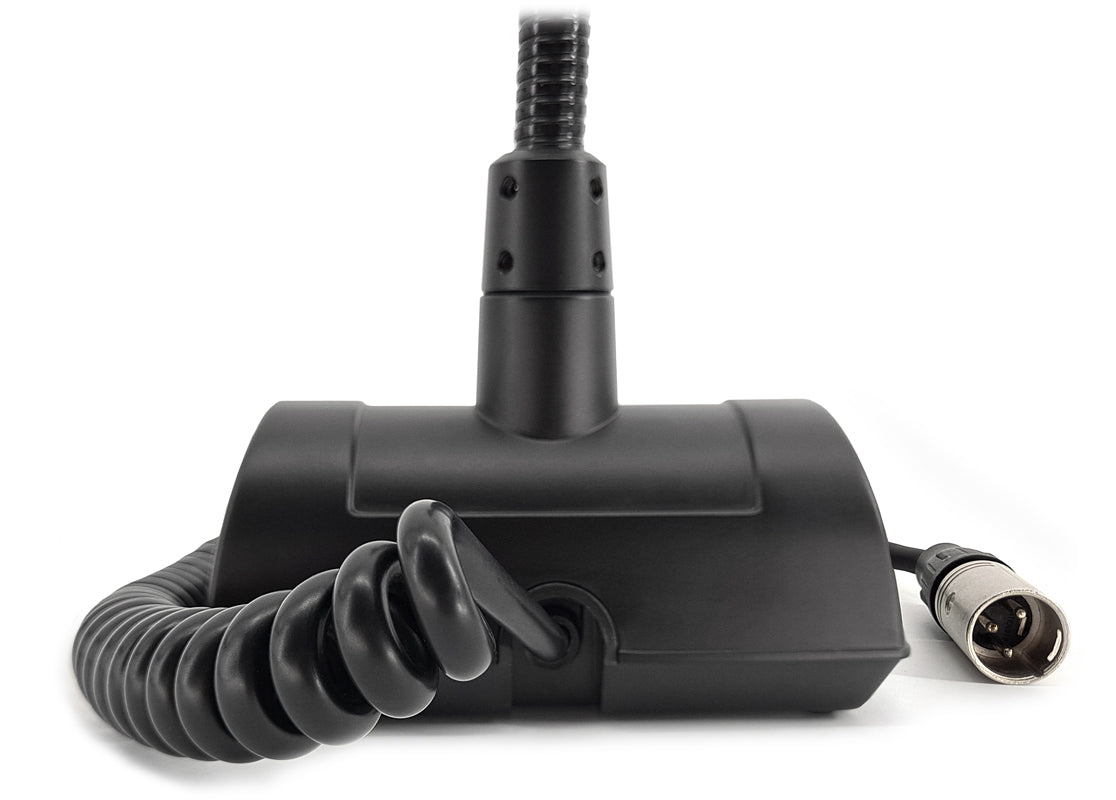

PTT1 DESKTOP PUSH-TO-TALK GOOSENECK MICROPHONE

The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your baseball field sound system. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in tough environments.




S10 STADIUM SPEAKER SPECIFICATIONS:

Rated Power Output: 200 Watts

MAX Power: 300 Watts

Frequency Response: 70Hz - 18kHz

Coverage Pattern: 90° x 90°

SPL (@ 1W/1M): 103±3dB

Impedance: 8 Ohms

Transformer Taps: 12.5W, 25W, 50W, 100W, 200W @ 70V
                               25W, 50W, 100W, 200W @ 100V
                               8 Ohm Bypass

Low-Frequency Driver: 10" driver with 3" voice coil

High-Frequency Driver: 1" driver

Protection: Weatherproof IP66

Material: Fiber-reinforced plastic and metal enclosure with metal grill

Mount: Wall mounting bracket supplied

Dimensions (H x W x D): 13.7" (348 mm) x 13.98" (355 mm) x 15.16" (385 mm)

Weight: 31.45 lbs (14.27 kg)

Shipping Dimensions: 15.16" (385 mm) x 17.72" (450 mm) x 17.32" (440 mm)

Shipping Weight: 35 lbs (15.88 kg)

S6 Speaker Specifications:

RMS Power Rating: 60 Watt

Frequency Response: 80Hz - 16kHz

SPL (@ 1W/1M): 92 dB

Impedance: 8 Ohms

Transformer Taps: 3.75W, 7.5W, 15W, 30W, 60W @ 70V
                                  7.5W, 15W, 30W, 60W @ 100V
                                  8 Ohm Bypass

Woofer Size: 6.5"

Woofer Material: Polypropylene (PP)

Tweeter Size: 1"

Tweeter Diaphragm Material: Silk membrane

Protection: Water-resistant IP65

Material: ABS enclosure, UV protection, and metal grill

Mount: 180° surface mount bracket

Dimensions (H x W x D):
11.63" (295 mm) x 7.5" (190 mm) x 7.5" (190 mm) without bracket
11.63" (295 mm) x 7.5" (190 mm) x 9.63" (245 mm) with bracket

Weight: 7.9 lbs (3.6 kg)

MX9 9-CHANNEL RACKMOUNT MIXER SPECIFICATIONS:



Mic (XLR) Inputs: (7) XLR jacks

Line Level Inputs: (7) ¼" TRS jacks

Inserts: (7) ¼" TRS jacks

Pre-Fader Listen: Each channel has its own individual PFL switch

Outputs: (1) Set of XLR (L & R), (1) Set of ¼" TRS (L & R), (1) ¼" AUX Out, (1) ¼" FX Out, (1) ¼" Headphone monitor output

Effects: 24-bit DSP Effects Processor

Phantom Power Supply: +48V option (Ch 1-7)

Frequency Response: 20Hz - 20kHz, ± 3 dB

Distortion: <0.003% (A-weighted)

Microphone Balance Input Noise: -119 dB (A-weighted)

Signal-to-Noise Ratio: 60 dB

Single Channel Input Gain: MIC: 0 to 48 dB, LINE: -33 to +15 dB

Maximum Output Level: +20 dBu

Mic Input High Pass Filter: 75Hz, 18dB/OCT

Single-Channel Equalization: High-frequency: ± 15 dB @ 12kHz; mid-frequency: ±12 dB @ 2.5kHz; Low-frequency: ±15 dB @ 80Hz

Power: Built-in switching power adapter 110-220V, 30W

Power Consumption: ≤23W

Dimensions (H x W x D): 5.51" (140 mm) x 19" (483 mm) x 9.45" (240 mm)

Weight: 8.82 lbs (4 kg)

DA2500 DUAL-IMPEDANCE POWER AMPLIFIER SPECIFICATIONS:

Rated Power Output: 2 x 500W at 70V, 500W at 4 Ohm, 250W at 8 Ohm

Speaker Outputs: 70V / 4~16Ω

Input Sensitivity: ±385mV/20kΩ, balanced input

Frequency Response: 80Hz~16kHz (+1 dB,-3 dB)

S/N Ratio: ≥95 dB

THD: ≤0.1% (at 1kHz, 1/3 rated power)

Control: Power control and fault indication remote monitoring via Euroblock connection

Indicator Light: Signal, peak clipping, protection, and power supply

Protection: High temperature, overload, short-circuit

Cooling: Fan-forced cooling

Power Consumption: 1200W

Power Supply: ~110-120V 60Hz

Dimensions (H x W x D): 1.73" (44 mm) x 19.05" (484 mm) x 12.4" (315 mm)

Weight: 10.8 lbs (4.9 kg)

BTR1 Bluetooth Receiver Specifications:

Bluetooth® Version: Bluetooth V5.0

Supported Codecs: Qualcomm® aptX™,  aptX™ HD, aptX™ LL, AAC, and SBC

Bluetooth® Range: 100 feet (30 meters)

Input: Bluetooth

Outputs: Stereo Analog RCA, Digital Optical (S/PDIF)

Input Power: 5V, 200 mA

Output Voltage: 2.1 Volts RMS

Output Impedance: 57 Ohms

D/A Converter: PCM5102A

Frequency Response: 10Hz - 20kHz (+/- 0.5 dB)

Signal to Noise Ratio: 112 dB

Total Harmonic Distortion: -93 dB

PCM Support: 384kHz / 32bit

Enclosure: Aluminum

Dimensions (H x W x D): 0.87" (22 mm) x 3.54" (90 mm) x 3.74" (95 mm)

Weight: 0.35 lbs (0.16 kg)

PTT1 Paging Microphone Specifications:

Polar Pattern: Uni-directional

Frequency Response: 80Hz~12kHz

Impedance: 600Ω ± 30%

Sensitivity: -72dB ± 3dB

Connector: 3-pin male XLR

Housing: Die-Cast Zinc

Cable: 1.5M (approx. 5')

Dimensions: 6.38" (162 mm) x 4.8" (122 mm) x 14.49" (368 mm)

Weight (without cable): 1.87 lbs (0.85 kg)

Includes

(3) S10 10" 70 Volt 2-Way All-Weather Stadium Loudspeakers
        (3) Wall Mounting Brackets
(4) S6 6.5" 70 Volt Outdoor Surface Mount Speakers
        (4) U-Brackets
(1) MX9 9-Channel Rack Mount Mixer with Bluetooth and Effects
       (1) Power Cord
(1) DA2500 Dual-Impedance 500W Rack Mount Power Amplifier
       (1) Power Cord
(1) BTR1 Bluetooth Wireless Audio Receiver with 100ft Range
(1) PTT1 Desktop Push-To-Talk Gooseneck Microphone
(2) Prep Wire to Female XLR Patch Cables - 3ft
(500') 12/2 Gauge Aquaseal Speaker Wire

Downloads

S10 Stadium Speakers:

Manual

Cut Sheet


S6 Speakers:

Manual

Cut Sheet


MX9 Mixer:

Manual


DA2500 Power Amplifier:

Manual


BTR1 Bluetooth Wireless Receiver:

Manual

Cut Sheet


PTT1 Paging Microphone:

Manual
